Carbon wheelset for demanding all-mountain use & E-MTB.

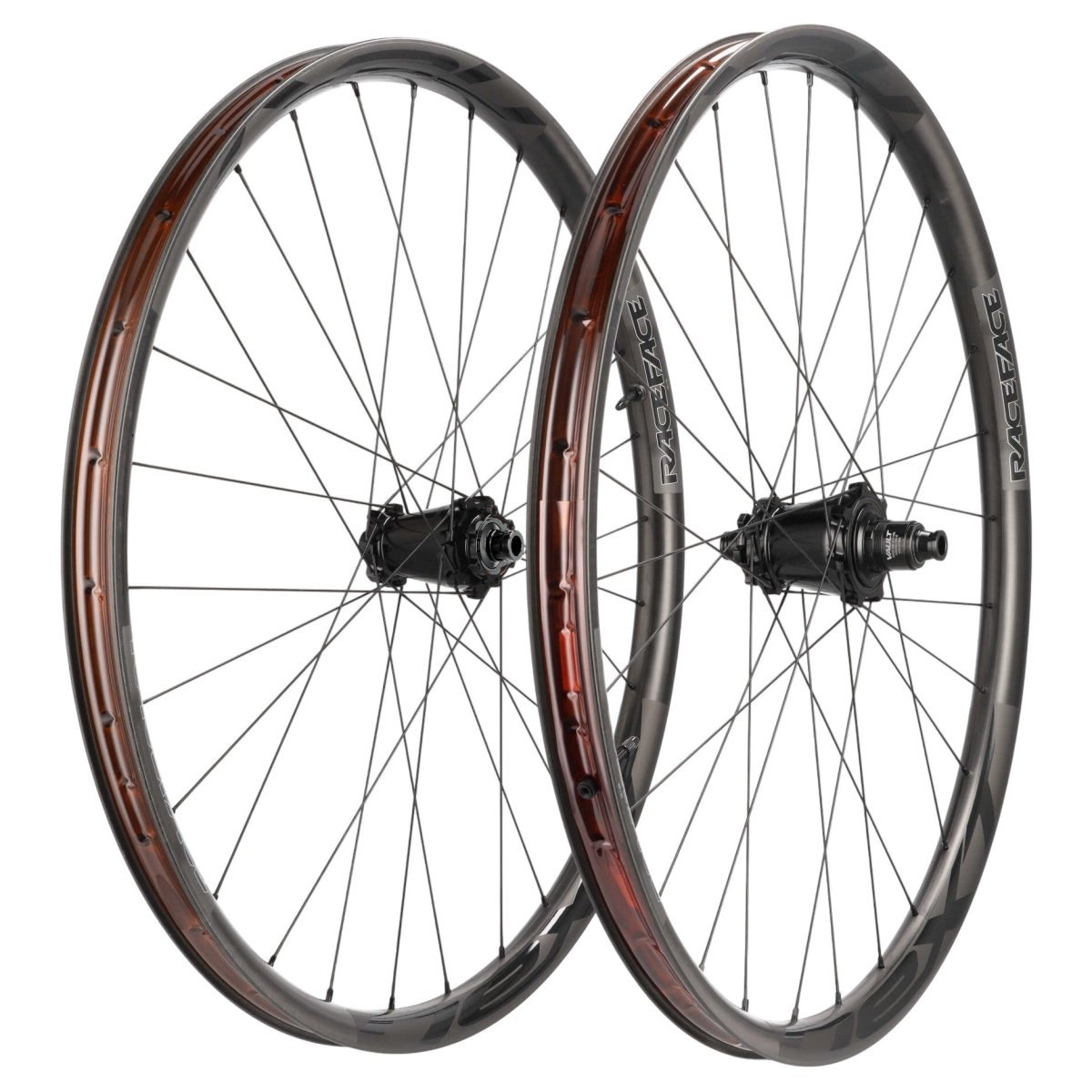

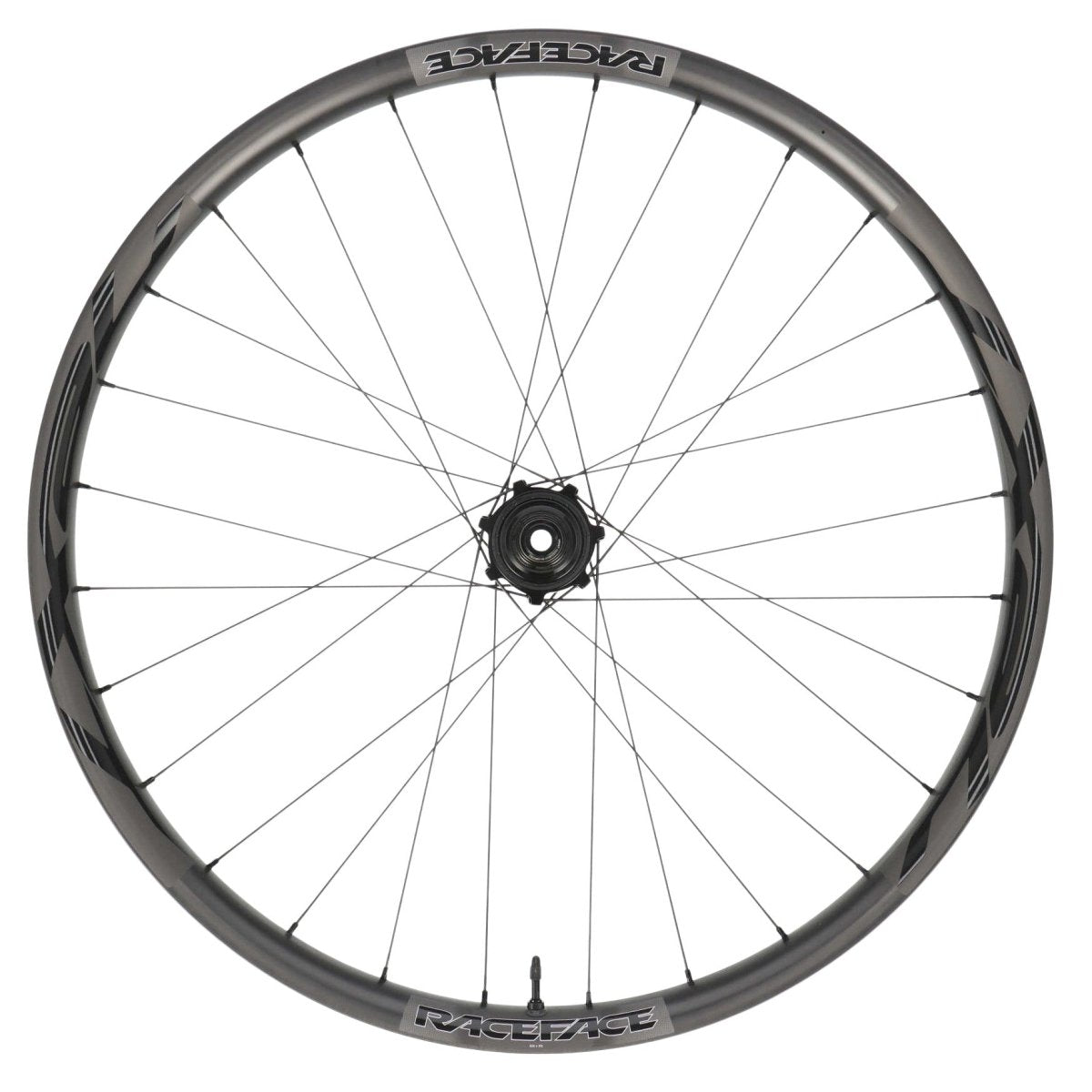

The Race Face Next R 31 Carbon Wheelset in 29" combines a wide, modern rim profile with robust construction and very fast hub technology. With Boost dimensions (15x110 mm / 12x148 mm), 6-bolt disc, and SRAM XD freehub, it is perfectly suited for aggressive all-mountain and E-MTB setups where performance is key both uphill and downhill.

The UD carbon rims with 31 mm inner width and 37 mm outer width provide a stable contact surface for wide tires and ensure ample grip, high lateral stability in corners, and a controlled, modern ride characteristic. The asymmetrical rim profile improves spoke tension and thus wheel stiffness – ideal if you want to brake hard, steer precisely, and still have confidence in rough terrain.

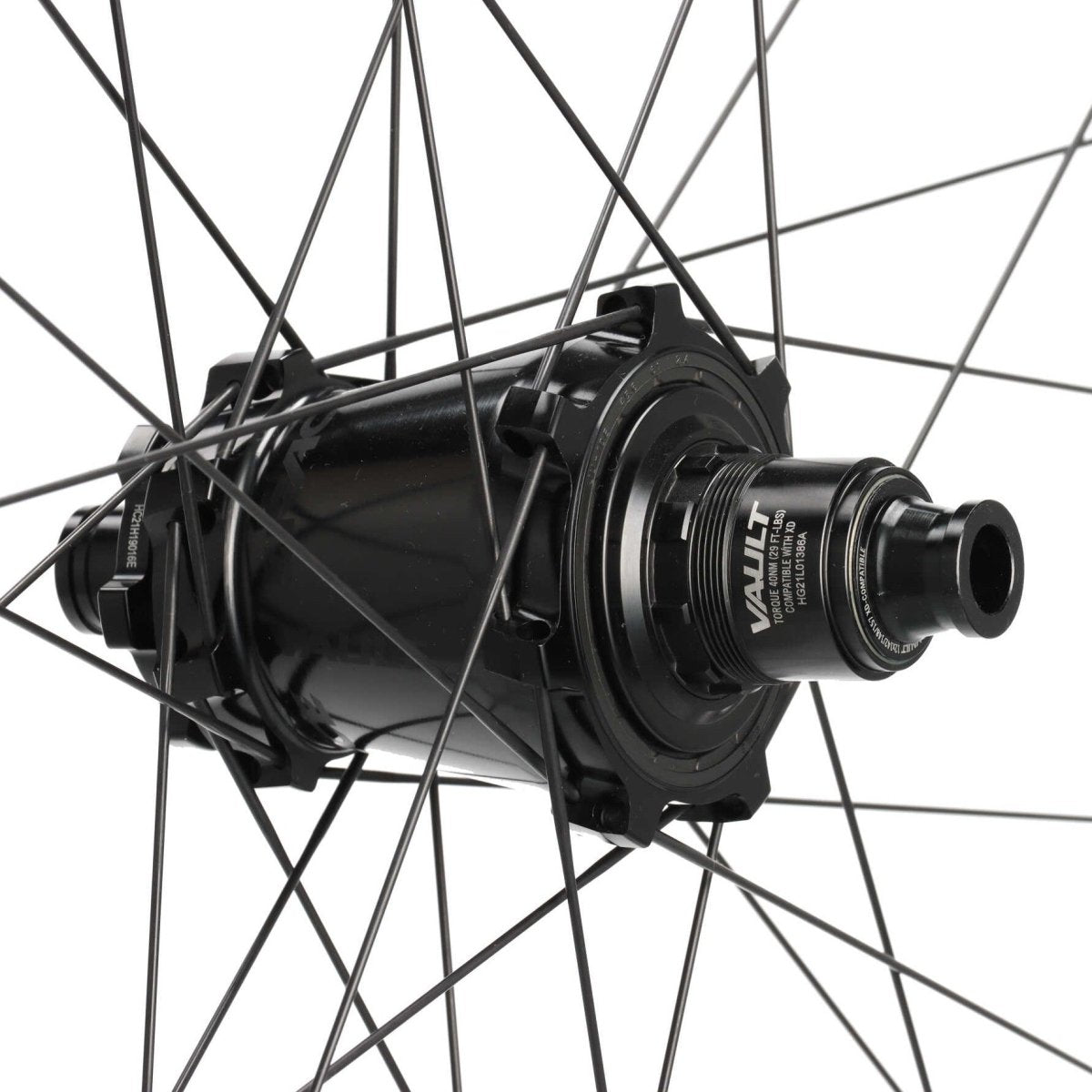

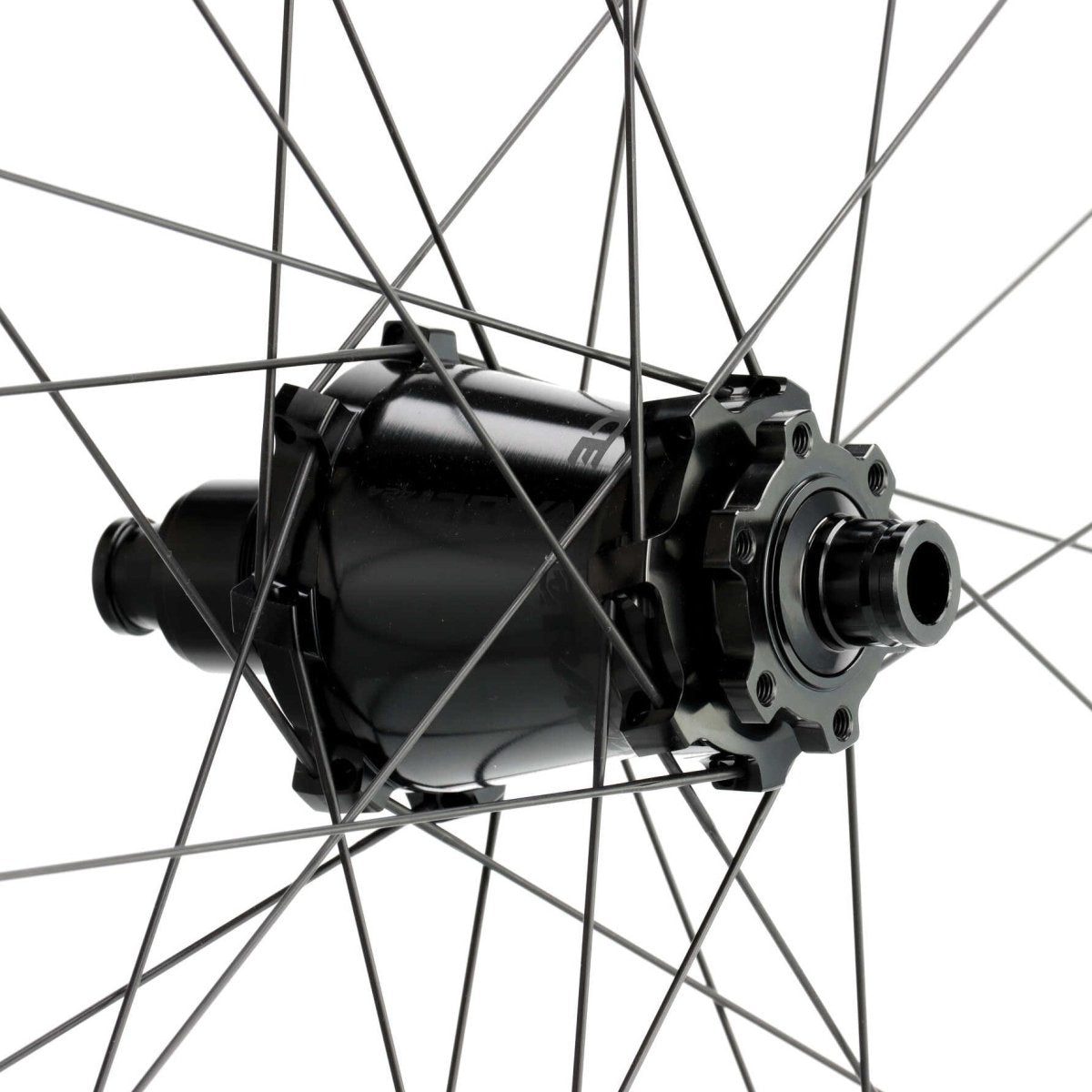

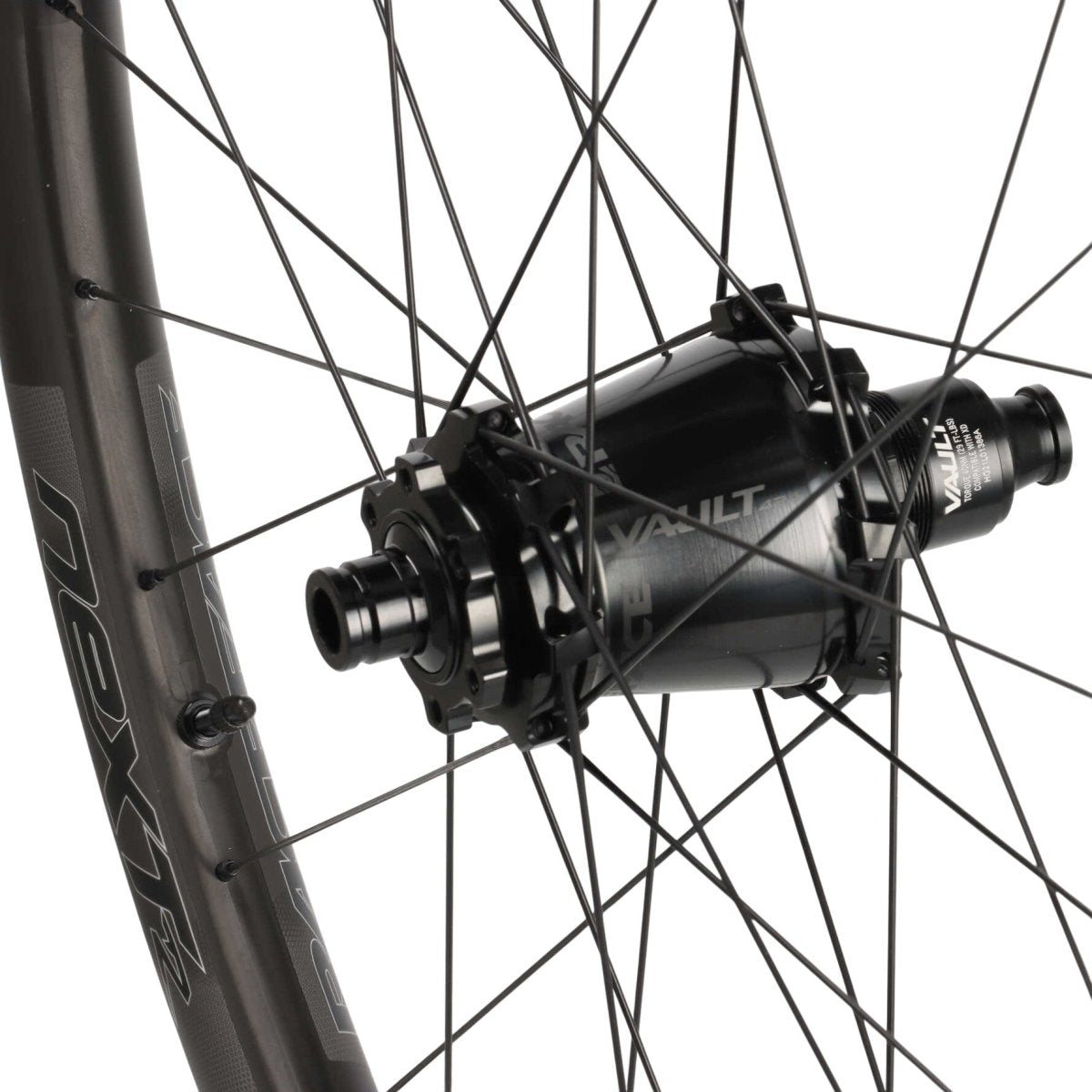

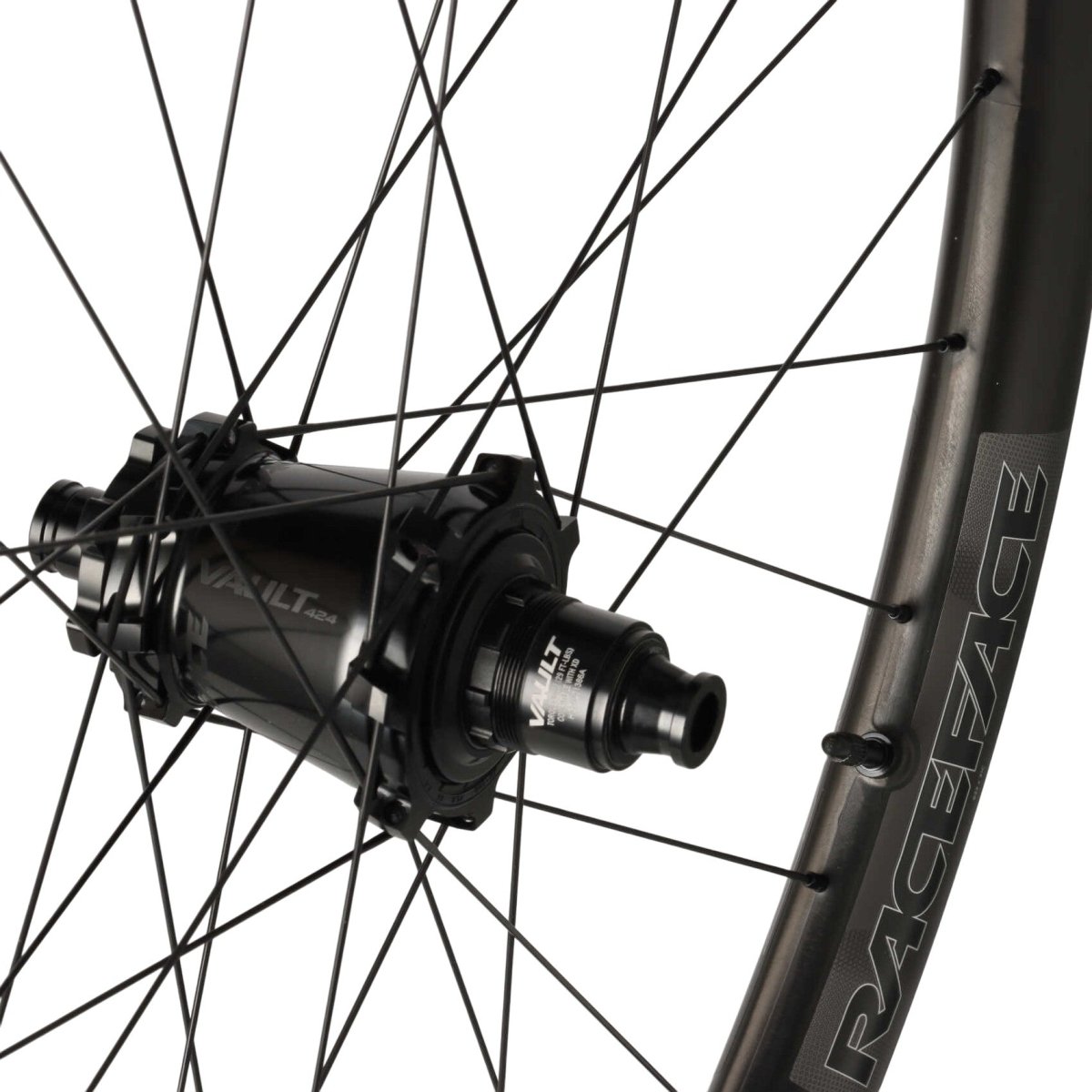

At the heart of the wheelset is the Race Face Vault hub with extremely fast engagement of just . This translates pedal strokes directly into propulsion – whether at the start, out of tight corners, or on technical uphills. Straight-pull, double-butted spokes (2.0/1.5/2.0) are laced in a 3-cross pattern and tensioned with black aluminum nipples. For emergencies, spare spokes for the rear wheel are included.

The wheelset is Tubeless Ready: With suitable rim tape, valves, and sealant, you can convert to a tubeless setup and benefit from lower pressures, more traction, and better puncture protection. With a weight of approx. 1765 g (29" Set), the Next R 31 is one of the lightweight yet very robust carbon options in the all-mountain and E-MTB sector.



Highlights:

  • Wide Carbon Rims: 31 mm inner width for voluminous tires, excellent grip, and secure lateral support in challenging terrain.
  • Vault Hubs: lightning-fast engagement (3°) for immediate acceleration – ideal for technical climbs and sprints.
  • All-Mountain & E-MTB Compatible: robust UD carbon layup, asymmetrical rims, and stable straight-pull spokes.
  • Tubeless Ready: designed for tubeless operation (rim tape & valves required).
  • Boost Standard & SRAM XD: 15x110 mm / 12x148 mm with XD freehub – suitable for modern enduro & E-MTB frames.
  • Spare Spokes Included: comes with 5 additional spokes.



Technical Data:

  • Model: Race Face Next R 31 Carbon Wheelset
  • Intended Use: All-Mountain, Enduro, E-MTB (depending on frame/manufacturer approval)
  • Wheel Size: 29"
  • Rim Material: UD Carbon
  • Outer Rim Width: 37 mm
  • Inner Rim Width: 31 mm
  • Rim Profile: asymmetrical, hookless, tubeless ready
  • Nipples: black anodized aluminum nipples
  • Spoke Count: 28 (front), 28 (rear)
  • Spokes: straight-pull, double-butted 2.0 / 1.5 / 2.0, 3-cross lacing
  • Spoke Offset: 4.5 mm
  • Hubs: Race Face Vault (Boost)
  • Freehub: SRAM XD (mounted)
  • Brake Mount: 6-bolt (IS)
  • Front Axle System: 15 x 110 mm Boost thru-axle
  • Rear Axle System: 12 x 148 mm Boost thru-axle
  • Tubeless System: Tubeless Ready (rim tape & valves required, not included)
  • Color: Stealth (black, subtle logos)
  • Weight: approx. 1765 g (29" wheelset, manufacturer's specification)



Scope of Delivery:

  • 1 x Race Face Next R 31 Carbon Front Wheel 29" | 15x110 mm | 6-bolt
  • 1 x Race Face Next R 31 Carbon Rear Wheel 29" | 12x148 mm | 6-bolt | SRAM XD freehub

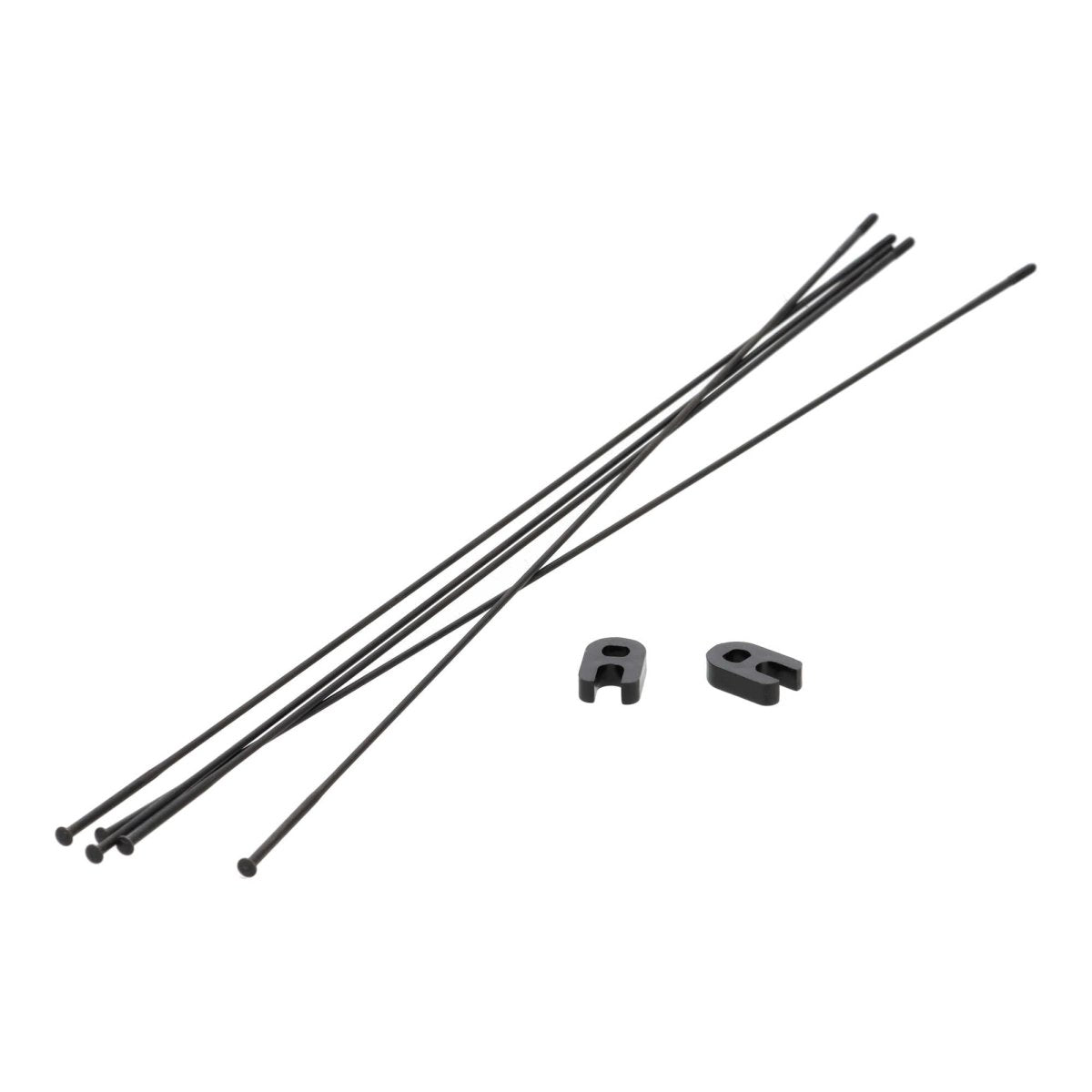

  • 5 x Spare spokes
  • 2x Tubeless valve



GTIN (front): 821973319650 | GTIN (rear): 821973319681

The Race Face Next R 31 Carbon Wheelset is perfect for riders looking for a lightweight, wide, and extremely durable carbon wheelset for all-mountain and E-MTB use – featuring a fast Vault hub and Boost standard.



RACEFACE

SKU: B3E1

Race Face Next R 31 Carbon Wheelset 29" | Boost 15x110 / 12x148 mm | 6-Bolt Disc | SRAM XD | All-Mountain / E-MTB

  • Boost 15x110 / 12x148, 6-bolt & SRAM XD freehub – ready for current Enduro & E-MTB frames
  • Race Face Vault hubs with only 3° engagement – extremely direct power transfer for sprints & technical uphills
  • Lightweight, wide carbon wheelset (31 mm internal) – ideal for modern, voluminous tires in all-mountain & E-MTB use
1.888,00 €
PayPal
Out of stock
Delivery time: 1–3 working days
Shipping with DHL
New and with 2-year warranty

Passt dieses Laufrad zu deinem Bike?

Video und FAQ zu Achsmaß, Freilauf und Bremsscheibenaufnahme.

Welcher Laufradsatz passt zu meinem Bike?

Entscheidend sind vor allem Zollgröße, Achsmaß und Freilauf. Diese Werte müssen zu deinem Rahmen, deiner Gabel und deiner Kassette passen.

Zusätzlich solltest du Bremsscheibenaufnahme und Felgenmaulweite prüfen. Die Bremsscheibenaufnahme ist oft lösbar, das Achsmaß dagegen muss wirklich passen.

Am sichersten ist es, die Maße am alten Laufrad zu prüfen und mit den Angaben im Produkt zu vergleichen.

Laufrad-Guide ansehen

Welchen Freilauf brauche ich?

Der Freilauf muss zu deiner Kassette passen. Häufige Standards sind Shimano HG, Shimano MicroSpline und SRAM XD.

Wenn du deine bisherige Kassette weiterverwenden möchtest, sollte der neue Laufradsatz denselben Freilaufstandard haben.

Bei manchen Laufrädern lässt sich der Freilaufkörper tauschen. Das hängt aber vom Nabenmodell ab und sollte vorher geprüft werden.

Laufrad-Guide ansehen

Kann ich Tubeless-Laufräder auch mit Schlauch fahren?

Ja, das ist problemlos möglich. In Tubeless- oder Tubeless-Ready-Laufrädern kannst du ganz normal einen Schlauch fahren.

Wichtig ist nur, dass Reifengröße, Ventillänge und Felgenband passen. Tubeless ist eine Option, aber kein Muss.

Laufrad-Guide ansehen

Welche Reifenbreite passt zur Felgenmaulweite?

Die Felgenmaulweite bestimmt, welche Reifenbreite sinnvoll ist. Zu schmale Reifen auf einer breiten Felge können instabil wirken, zu breite Reifen auf einer schmalen Felge eher schwammig.

Orientiere dich an den Herstellerempfehlungen und an der Reifenbreite, die du bisher fährst. Bei MTB-Laufrädern ist die Maulweite besonders wichtig.

Wenn Zollgröße, Achsmaß und Freilauf passen, ist die passende Reifenbreite meist der nächste wichtige Punkt.

Laufrad-Guide ansehen

Carbon wheelset for demanding all-mountain use & E-MTB.

The Race Face Next R 31 Carbon Wheelset in 29" combines a wide, modern rim profile with robust construction and very fast hub technology. With Boost dimensions (15x110 mm / 12x148 mm), 6-bolt disc, and SRAM XD freehub, it is perfectly suited for aggressive all-mountain and E-MTB setups where performance is key both uphill and downhill.

The UD carbon rims with 31 mm inner width and 37 mm outer width provide a stable contact surface for wide tires and ensure ample grip, high lateral stability in corners, and a controlled, modern ride characteristic. The asymmetrical rim profile improves spoke tension and thus wheel stiffness – ideal if you want to brake hard, steer precisely, and still have confidence in rough terrain.

At the heart of the wheelset is the Race Face Vault hub with extremely fast engagement of just . This translates pedal strokes directly into propulsion – whether at the start, out of tight corners, or on technical uphills. Straight-pull, double-butted spokes (2.0/1.5/2.0) are laced in a 3-cross pattern and tensioned with black aluminum nipples. For emergencies, spare spokes for the rear wheel are included.

The wheelset is Tubeless Ready: With suitable rim tape, valves, and sealant, you can convert to a tubeless setup and benefit from lower pressures, more traction, and better puncture protection. With a weight of approx. 1765 g (29" Set), the Next R 31 is one of the lightweight yet very robust carbon options in the all-mountain and E-MTB sector.



Highlights:

  • Wide Carbon Rims: 31 mm inner width for voluminous tires, excellent grip, and secure lateral support in challenging terrain.
  • Vault Hubs: lightning-fast engagement (3°) for immediate acceleration – ideal for technical climbs and sprints.
  • All-Mountain & E-MTB Compatible: robust UD carbon layup, asymmetrical rims, and stable straight-pull spokes.
  • Tubeless Ready: designed for tubeless operation (rim tape & valves required).
  • Boost Standard & SRAM XD: 15x110 mm / 12x148 mm with XD freehub – suitable for modern enduro & E-MTB frames.
  • Spare Spokes Included: comes with 5 additional spokes.



Technical Data:

  • Model: Race Face Next R 31 Carbon Wheelset
  • Intended Use: All-Mountain, Enduro, E-MTB (depending on frame/manufacturer approval)
  • Wheel Size: 29"
  • Rim Material: UD Carbon
  • Outer Rim Width: 37 mm
  • Inner Rim Width: 31 mm
  • Rim Profile: asymmetrical, hookless, tubeless ready
  • Nipples: black anodized aluminum nipples
  • Spoke Count: 28 (front), 28 (rear)
  • Spokes: straight-pull, double-butted 2.0 / 1.5 / 2.0, 3-cross lacing
  • Spoke Offset: 4.5 mm
  • Hubs: Race Face Vault (Boost)
  • Freehub: SRAM XD (mounted)
  • Brake Mount: 6-bolt (IS)
  • Front Axle System: 15 x 110 mm Boost thru-axle
  • Rear Axle System: 12 x 148 mm Boost thru-axle
  • Tubeless System: Tubeless Ready (rim tape & valves required, not included)
  • Color: Stealth (black, subtle logos)
  • Weight: approx. 1765 g (29" wheelset, manufacturer's specification)



Scope of Delivery:

  • 1 x Race Face Next R 31 Carbon Front Wheel 29" | 15x110 mm | 6-bolt
  • 1 x Race Face Next R 31 Carbon Rear Wheel 29" | 12x148 mm | 6-bolt | SRAM XD freehub
  • 5 x Spare spokes
  • 2x Tubeless valve



GTIN (front): 821973319650 | GTIN (rear): 821973319681

The Race Face Next R 31 Carbon Wheelset is perfect for riders looking for a lightweight, wide, and extremely durable carbon wheelset for all-mountain and E-MTB use – featuring a fast Vault hub and Boost standard.
