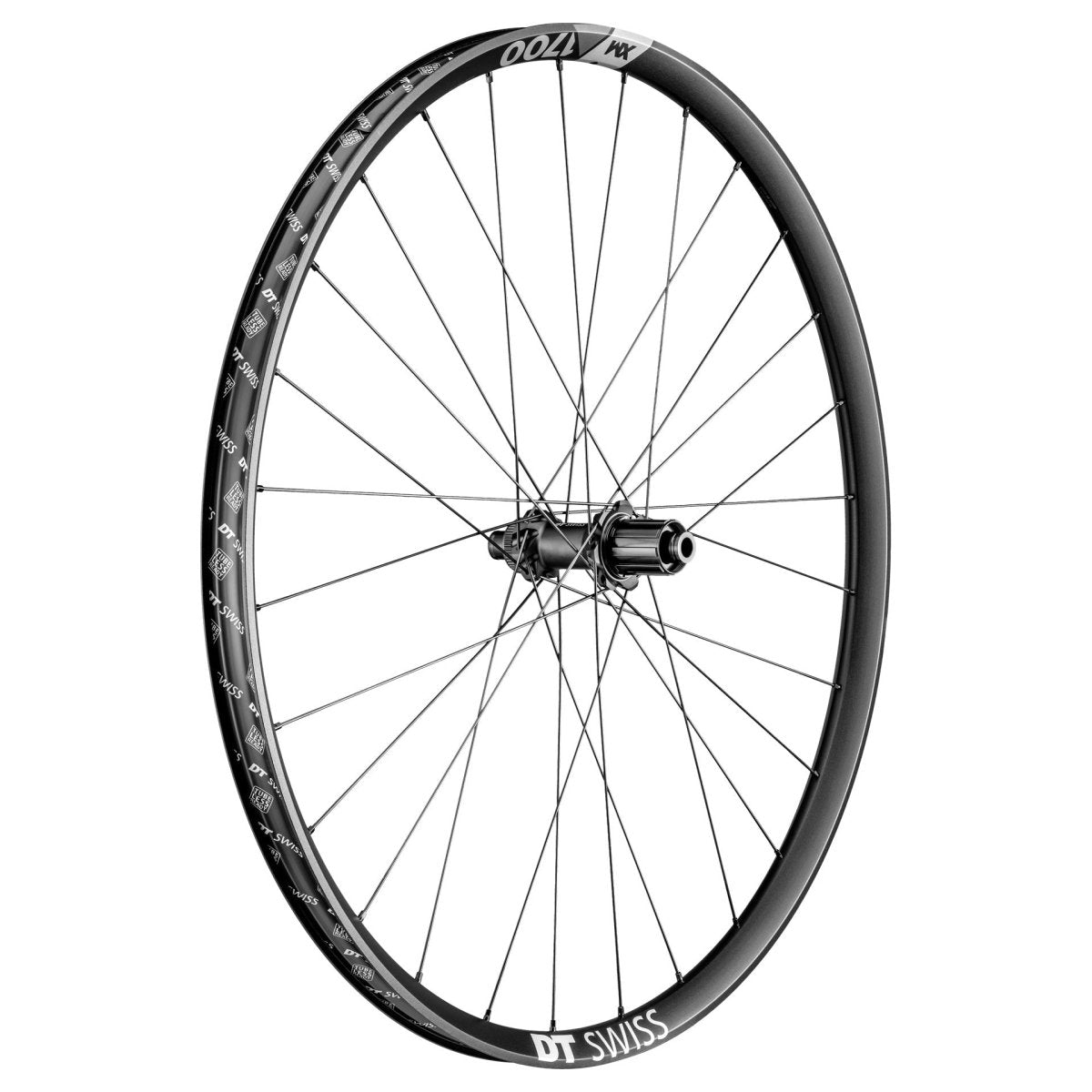

The DT Swiss XM 1700 SPLINE 29" rear wheel combines modern wheel technology with robust construction – ideal for trail and all-mountain riders who value performance, reliability, and precise handling. With a 30 mm inner rim width and Tubeless Ready rim, it is perfectly suited for wide tires and challenging terrain.
The proven DT Swiss 350 hub body with Ratchet System 36 SL guarantees high durability and direct power transmission. Thanks to the Boost standard and ASTM classification 4, the wheel is also suitable for tough use – even with e-bikes up to 25 km/h.
Functional advantages:
- 30 mm inner width: Ideal for wide trail and all-mountain tires
- DT 350 hub + Ratchet System 36 SL: Durable, easy to maintain, and reliable
- Approved for e-bikes: Up to 25 km/h / 250 W
Technical details:
- Rim: Aluminum, 29" / 700C, Tubeless Ready, hooked/crotchet profile
- Inner rim width: 30 mm | Outer width: 35 mm
- Rim height: 21 mm
- Hub: DT Swiss 350 with Ratchet System 36 SL
- Installation width: 12x148 mm Boost
- Brake system: Disc Center Lock (6-bolt brake rotors also possible. 6-bolt adapter included)
- Freehub: Shimano HG
- Weight: approx. 985 g
- Max. system weight: 120 kg
- ASTM classification: Category 4 (Trail, All Mountain)
- E-bike compatible: Yes (up to 25 km/h / 250 W)
Scope of delivery:
- 1x DT Swiss XM 1700 SPLINE 29" rear wheel | 30 mm | Boost | Center Lock (incl. 6-bolt adapter) | Shimano HG
- Including Tubeless valve
- Note: Workshop packaging (without outer packaging)
EAN: 7613052098401 | Manufacturer no.: WXM1700TEDBSA13806
The perfect trail rear wheel – wide, stable, easy to maintain.
SKU: T25
DT Swiss XM 1700 SPLINE 29" Rear Wheel | 30 mm Internal Width | 12x148 mm Boost | Shimano HG Freehub
Check compatibility
Will this wheel fit your bike?
In our short video, we explain what to look out for when checking axle size, freehub type and brake rotor mount.
The DT Swiss XM 1700 SPLINE 29" rear wheel combines modern wheel technology with robust construction – ideal for trail and all-mountain riders who value performance, reliability, and precise handling. With a 30 mm inner rim width and Tubeless Ready rim, it is perfectly suited for wide tires and challenging terrain.
The proven DT Swiss 350 hub body with Ratchet System 36 SL guarantees high durability and direct power transmission. Thanks to the Boost standard and ASTM classification 4, the wheel is also suitable for tough use – even with e-bikes up to 25 km/h.
Functional advantages:
- 30 mm inner width: Ideal for wide trail and all-mountain tires
- DT 350 hub + Ratchet System 36 SL: Durable, easy to maintain, and reliable
- Approved for e-bikes: Up to 25 km/h / 250 W
Technical details:
- Rim: Aluminum, 29" / 700C, Tubeless Ready, hooked/crotchet profile
- Inner rim width: 30 mm | Outer width: 35 mm
- Rim height: 21 mm
- Hub: DT Swiss 350 with Ratchet System 36 SL
- Installation width: 12x148 mm Boost
- Brake system: Disc Center Lock (6-bolt brake rotors also possible. 6-bolt adapter included)
- Freehub: Shimano HG
- Weight: approx. 985 g
- Max. system weight: 120 kg
- ASTM classification: Category 4 (Trail, All Mountain)
- E-bike compatible: Yes (up to 25 km/h / 250 W)
Scope of delivery:
- 1x DT Swiss XM 1700 SPLINE 29" rear wheel | 30 mm | Boost | Center Lock (incl. 6-bolt adapter) | Shimano HG
- Including Tubeless valve
- Note: Workshop packaging (without outer packaging)
EAN: 7613052098401 | Manufacturer no.: WXM1700TEDBSA13806
The perfect trail rear wheel – wide, stable, easy to maintain.
