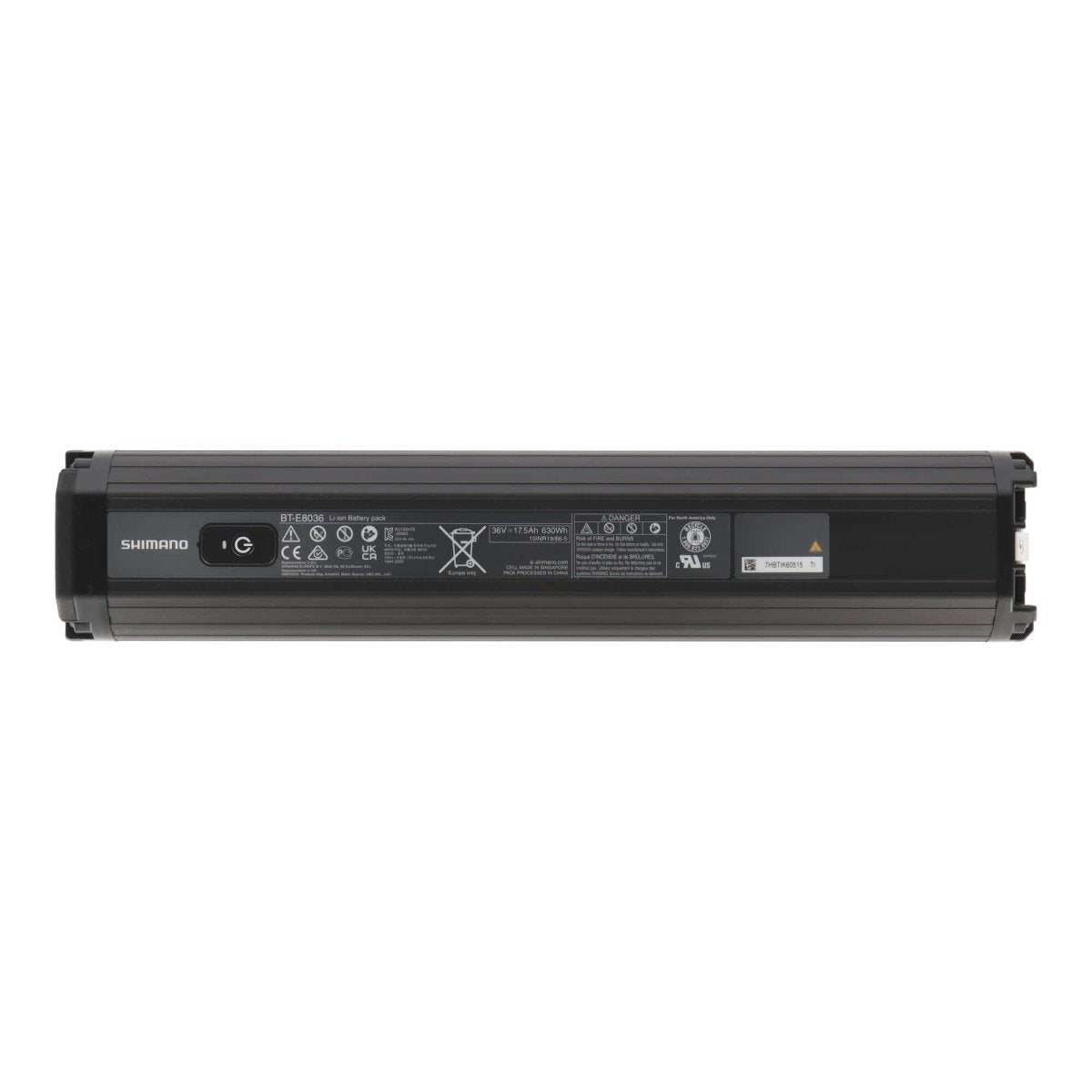

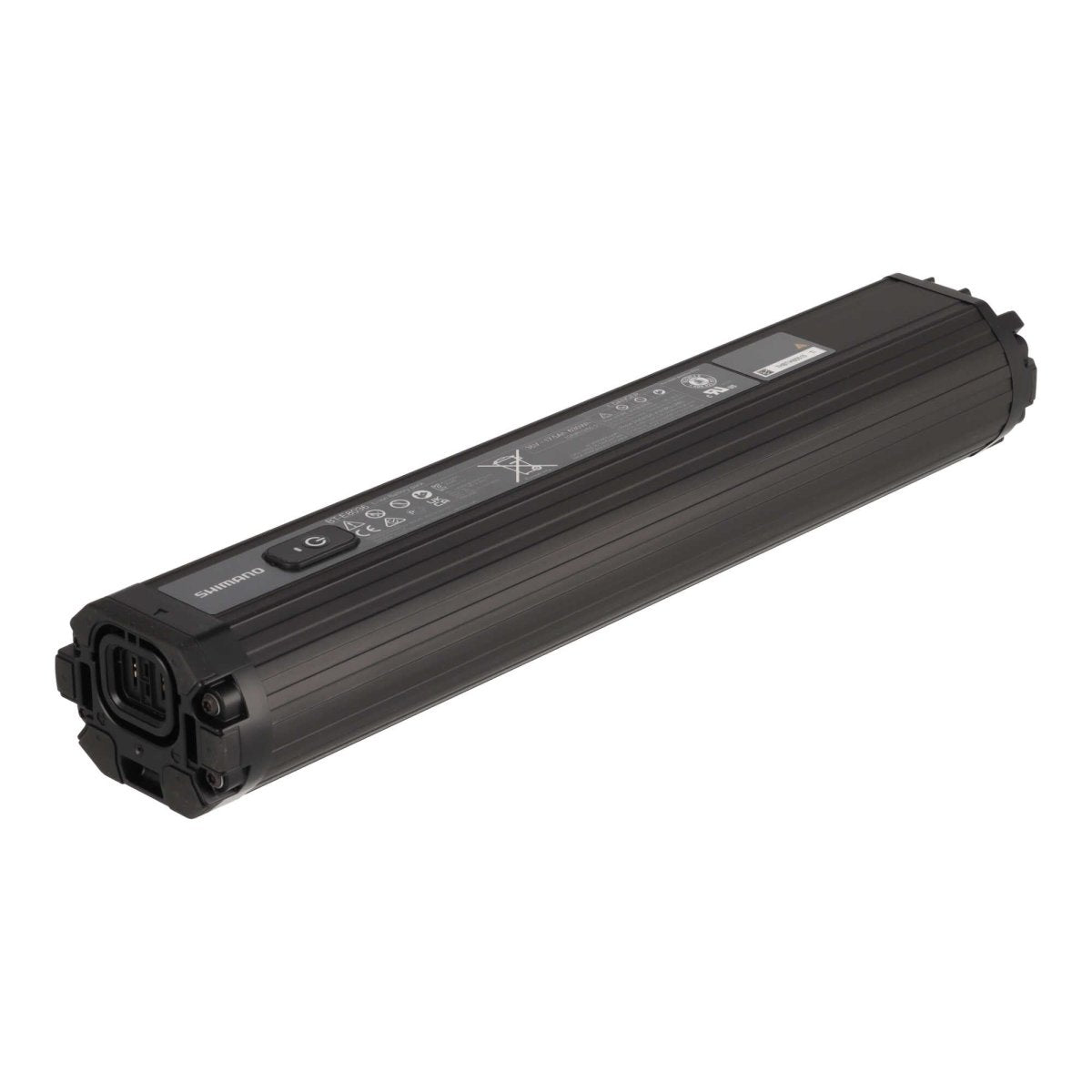

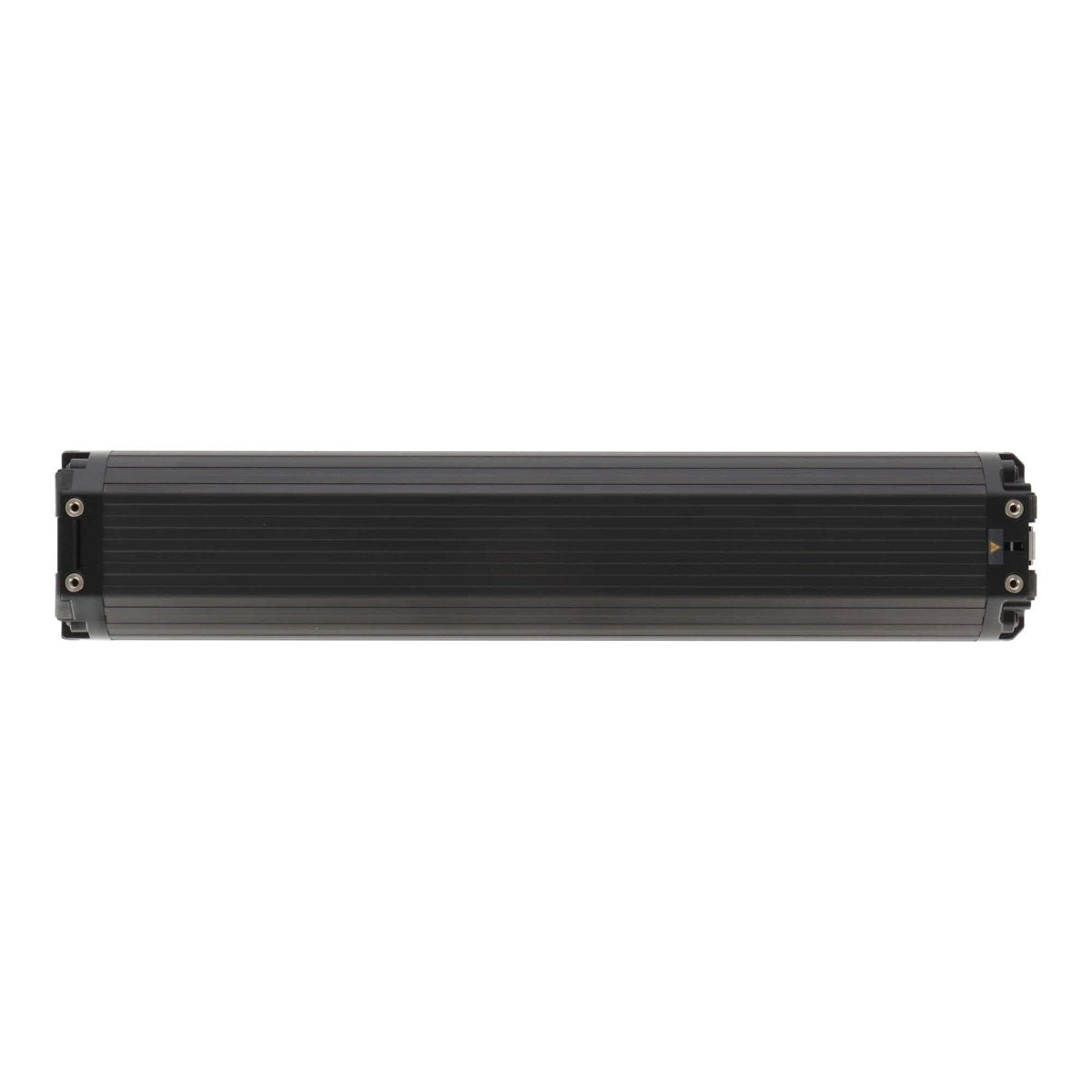

More Range, Modern Design – the Shimano Steps BT-E8036 Battery with 630 Wh!

The Shimano Steps BT-E8036 is a powerful lithium-ion battery for internal frame mounting and offers an impressive 630 Wh capacity for long tours. Thanks to its slim, flat design, it allows for more elegant frame shapes and integrates seamlessly into the downtube – ideal for modern e-mountain bikes and trekking bikes.

With the proven 1st generation Shimano battery management system, the BT-E8036 provides high range, short charging times, and a long lifespan. Even after more than 1,000 charging cycles, the battery still retains at least 60% of its original capacity.

Highlights:

• High Capacity: 630 Wh (36 V, 17.5 Ah) – for extended tours and e-MTB adventures
• Integrated Design: flat design for elegant downtube mounting
• Durable: over 1,000 charging cycles with at least 60% remaining capacity
• Fast Charging: 80% in approx. 3.2 hours with quick charger EC-E8004
• Intelligent Battery Management: Battery Management System (1st generation) protects against overcharging and deep discharge
• Robust & Reliable: waterproof, shockproof, and perfect for demanding e-MTB use

Technical Data:

• Model: Shimano Steps BT-E8036
• Battery Type: Lithium-ion (Li-Ion)
• Capacity: 630 Wh
• Voltage: 36 V
• Capacity (Ah): 17.5 Ah
• Battery Management: 1st generation Battery Management System (BMS)
• Mounting Position: integrated in the downtube (internal frame mounting)
• Compatibility: Shimano Steps DU-EP800, DU-E8000, DU-E7000, DU-E6100, DU-E5000, etc.
• Charger Compatibility: EC-E8004 quick charger
• Charging Time 80%: approx. 3.2 hours
• Charging Time 100%: approx. 4.8 hours
• Lifespan: > 1,000 charging cycles (≥ 60% remaining capacity)
• Weight: approx. 3.7 kg
• Color: black
• Features: charge level indicator, error signal, on/off switch

Scope of Delivery:

• 1 x Shimano Steps BT-E8036 battery (630 Wh)
• Note: Charger, holder, and lock are not included in the scope of delivery

The Shimano BT-E8036 impresses with its high range, modern design, and proven reliability – the perfect power source for all Shimano Steps e-bike systems.
